Configure Total Application Security

  1. Enter your Public IP Address as "<Public IP>:8080" in the browser to attain Indusface TAS Domain Registration page.

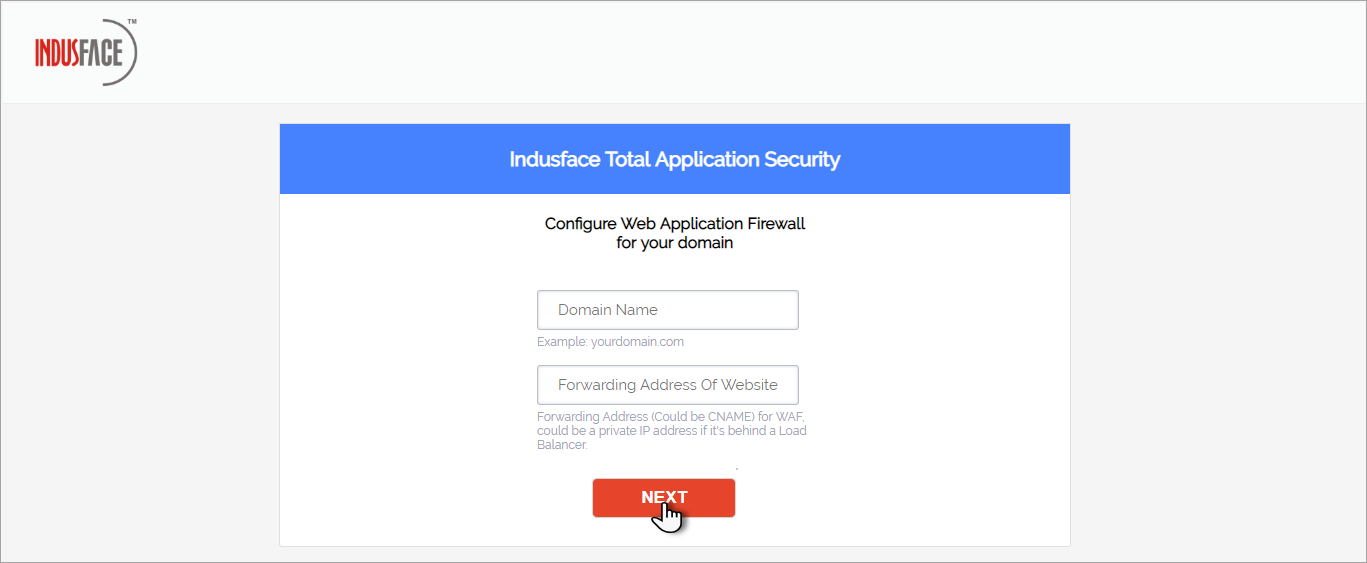

  2. Click Domain Name field, enter your domain name, click Forwarding Address Of Website field and usually IP address is generated. If not pre-generated, enter your Web Application IP Address and the click Next button.
A customer can add CNAME instead of IP address if there is any change in the addressing.

For HTTPS Website

  1. Click to select HTTPS option as incoming traffic, either one of the options from outgoing traffic and then click Next button. SSL Certificates page appears.
To know about more Deployment combinations, browse our Deployment Modes guide.
Click SSL Configuration and Routing change instruction links to proceed with configuration.
  1. Click Skip button to upload certificates after the registration.

Otherwise, enter the certificates in the respective fields and click Submit. Indusface WAF Status page appears.

Parameter

Description

Private Key

Copy your Private Key into any text editor(for eg: Notepad) and paste it from the editor to Private Key field.

Public Key

Copy your Public certificate into any text editor(for eg: Notepad) and paste it from the editor to this field.

Chain Certificate

Copy your Chain certificate into any text editor(for eg: Notepad) and paste it from the editor to this field.

While updating multiple chain certificates, paste one below another with a line gap.

Private Key Passphrase

This is an optional field. Click to enter your unique password for private key.

With successful certificate upload Indusface Total Application Security - WAF Status page appears. SSL Configuration Status is enabled and Routing Configuration is disabled if not configured.

Perform Routing Configuration steps to secure your website.

In case, SSL certificates upload is been skipped, both the Configuration Status is disabled. In order to avail Indusface services to Detect, Protect, and Monitor your application security, configuration need to be done.

Perform SSL Configuration & Routing Configuration to provide security to your website.

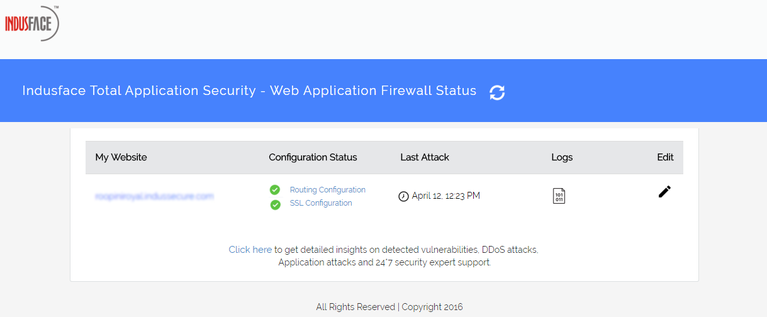

Refresh the Indusface TAS - WAF Status page and Configuration Status turns green if the Routing and SSL changes were successful.

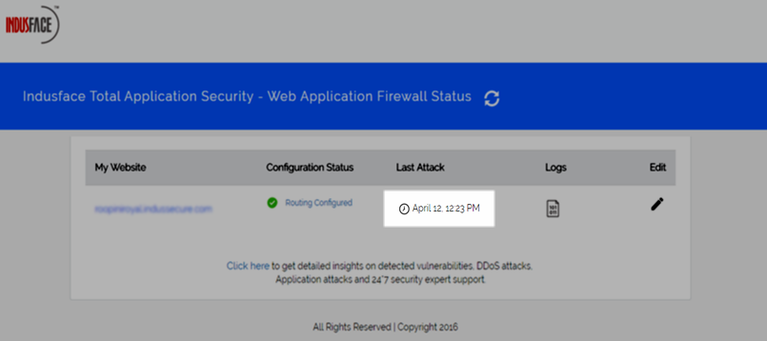

If an attack is performed on a website, the Last Attack column displays date and time of attack encountered.

  • Click to view the website logs.

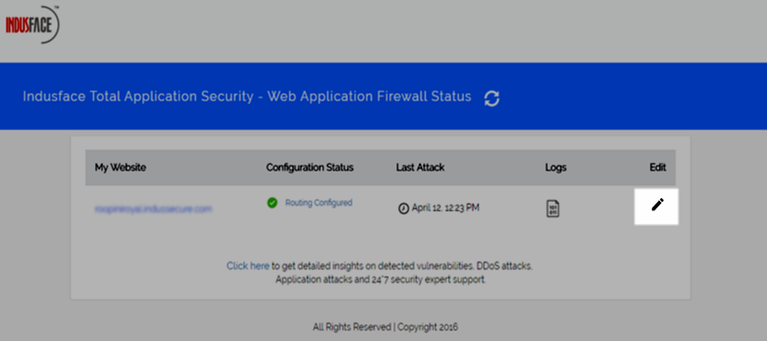

Click Edit icon to change the domain details in the TAS Domain Registration page if required.

Your domain is now configured with Total Application Security – Web Application Firewall AMI.

  • Click Click here link to register with Indusface Web Application Firewall.
Register with Indusface Web Application Firewall portal in order to get detailed insights on Detected VulnerabilitiesDDoS Attacks, Application Attacks and 24/7 Security Expert Support

For HTTP Website

  1. Click HTTP option as WAF incoming traffic, either one of the options as outgoing traffic and then click Submit. Indusface TAS - WAF Status page appears.
Click Routing Change Instructions link to go through the configuration process.
  1. If Routing Configuration is pending, error symbol is displayed. In order to avail Indusface services to Detect, Protect, and Monitor your application security, configuration need to be done.
Perform Routing Configuration steps to secure your website.

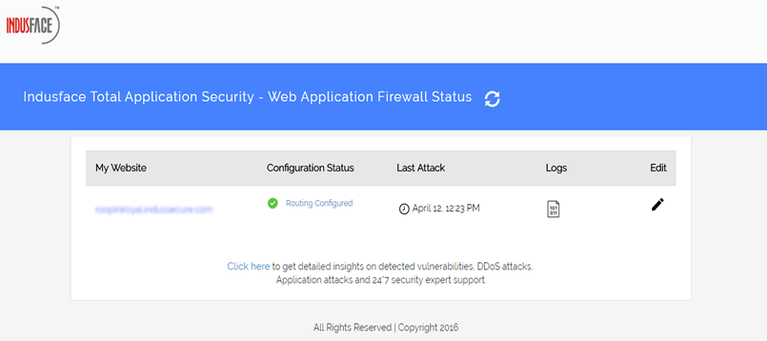

Refresh the Indusface TAS - WAF Status page, Configuration Status turns green if the Routing Configuration was successful.

Last Attack column displays the date and time of the attack encountered.

  • Click to view the website logs.
  • Click icon to change the domain details in the TAS Domain Registration page if required.

Your domain is now configured with Total Application Security – Web Application Firewall AMI.

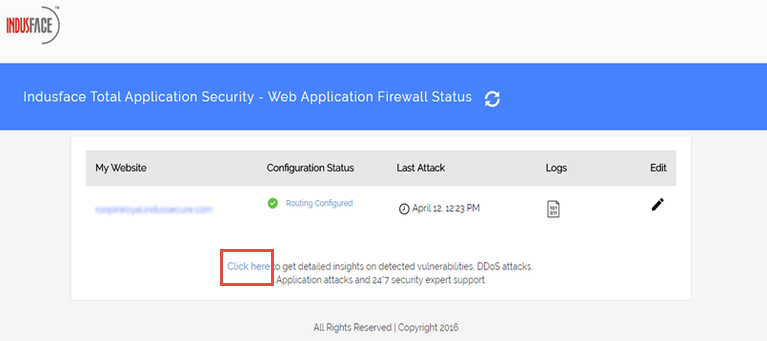

  • Click Click here link to register with Indusface Web Application Firewall.
Register with Indusface Web Application Firewall portal in order to get detailed insights on Detected VulnerabilitiesDDoS Attacks, Application Attacks and 24/7 Security Expert Support

Click to enter the details and click REGISTERApptrana Login page appears. Apptrana Login page appears.

Parameter

Description

Username

click and copy your AWS Customer ID as username.

Password

Click and copy your Instance ID as password.

Apptrana Registration page appears after TAS Configuration.

Click here to register into Apptrana.
